AQ Data Analysis -Creating the wind graph




  •  First , screenshot of  previous AQ data analysis graph  that published on Mongabay News

             was got.






  • Then using   plotDigitizer.com  get the data of the  wind line.
  • Next open the plotDigitizerapp  and upload the graph screenshot.
  • And start editing.

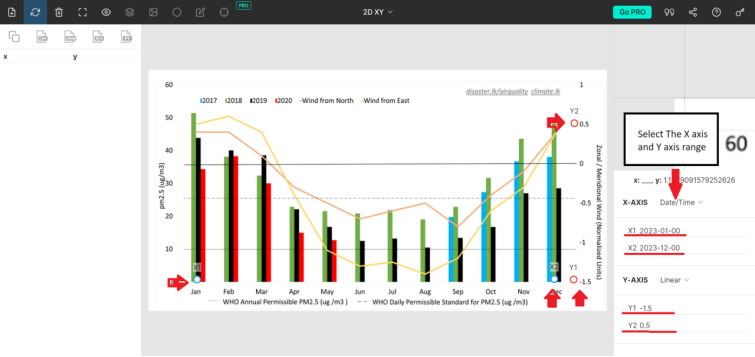

  • After that  select the X and Y axis and it range.




  •     Then set the point in the wind from east graph line  which want to get value.

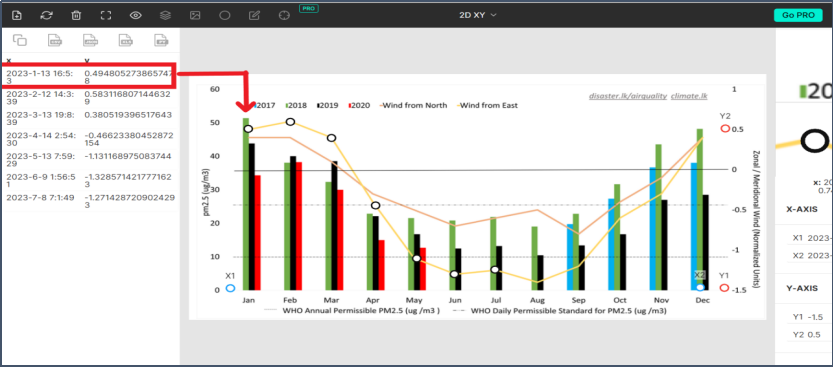

  •        Value of the each point is update to the left side of the column.

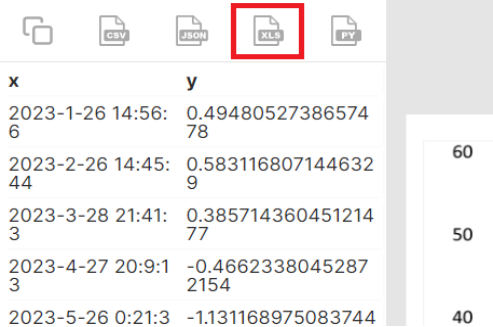

  •        Then download the excel file.



  •        Do the same procedure for wind from north graph line and get value.

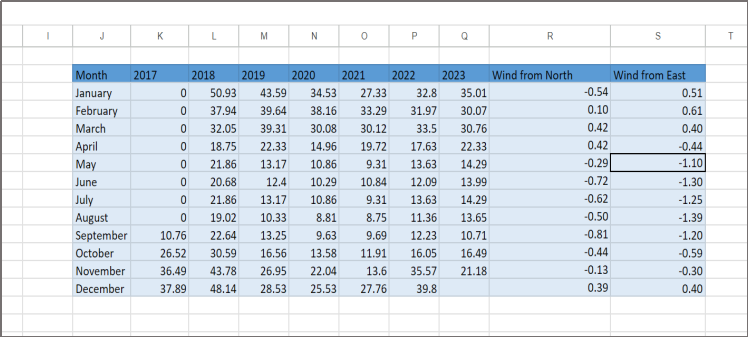

  •        Then  combo graph was made by using these downloaded  data.
